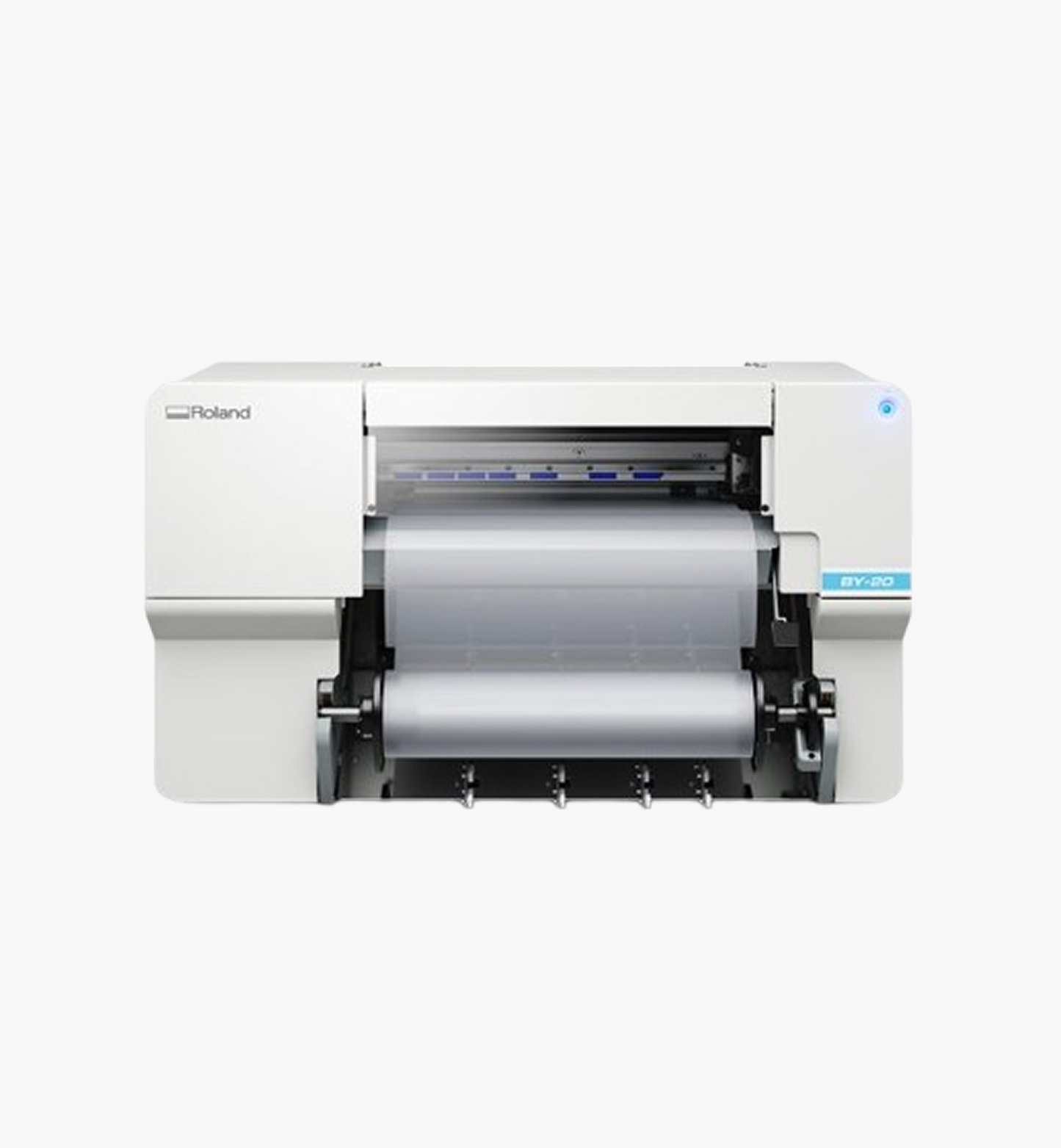

Desktop Direct-to-Film Printer & Cutter - BY-20

Desktop Direct-to-Film Printer & Cutter - BY-20

₹ 550,000.00
₹ 550,000.00 -16% (M.R.P.: ₹660,000.00 )
Product Bundles:
Desktop Direct-to-Film Prin...
Direct-to-Film Printer & Cu...
Direct-to-Film Printer & Cu...
Shipping calculated at checkout.
  • Standard delivery in 12-15 days

Installation

We offer on-site installation services for BY-20, ensuring seamless setup and operation. Please note that installation requests must be submitted within 5 days of delivery.

Warranty

Designed to elevate your business and crafted for exceptional performance, the VersaSTUDIO BY-20 comes with a comprehensive one-year warranty, ensuring trouble free operation.

Message For Damage Protection

Protect your investment with our optional damage protection plan. This coverage ensures that your printer remains operational with minimal downtime in case of unexpected damage or technical issues. Connect offline for Damage Protection Offers.

What’s Included?

  1. BY-20
  2. Power cord
  3. 1 Cutter Installed(default)
  4. 1 Blade Holder Installed(default)
  5. User’s Manual
  6. Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect)
View full details
Description Video Features Specification T&A Materials Downloads Reviews

Desktop Direct-to-Film Printer & Cutter - BY-20

Turn creativity into custom apparels and accessories with the VersaSTUDIO BY-20. This all-in-one direct-to-film printer helps simplify the process of printing and cutting and gives out exclusive results.

  • Direct-to-Film Printing – Easily create vibrant, detailed designs
  • Built-In Contour Cutting – Precision-cut printed designs for a professional finish
  • User-Friendly Operation – These high-quality results need no experience
  • Versatile Applications – Create customized apparel, accessories, and more
  • Compact & Efficient – Perfect for home-based businesses and small workspaces
  • Reliable Performance – Engineered for consistent, high-quality output
  • Business-Ready – Affordable and designed to help businesses grow

Watch BY-20 - Desktop Direct-to-Film Printer & Cutter In Action!

What Makes It Worth
Your Choice

  1. Versatile Media Handling – Supports widths from 5.91 to 20.2 in. (150 to 515 mm) Thickness Max. 39.3 mil (1.0 mm) with liner, for printing Thickness Max 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting Roll outer diameter Max. 5.9 in. (150 mm) Roll weight Max. 13.2 lb. (6 kg) Core diameter 3 in. (76.2 mm) or 2 in. (50.8 mm)
  2. High-Precision Printing & Cutting – Maximum print/cut width of 18.89 in. (480 mm) with a speed of 2.34 m²/h in standard mode
  3. Multi-Fabric Compatibility – Prints on cotton, polyester, denim, nylon, rayon, and more
  4. Compact & Cost-Effective – Budget-friendly DTF printer designed for startups and growing apparel businesses
  5. Seamless Workflow – Works with DTF powder shakers & heater units for automated production
  6. Seamless Software Integration – Works with FlexiDesigner VersaSTUDIO Edition & VersaWorks 6
  7. User-Friendly Software – Includes FlexiDESIGNER & VersaWorks 6 for easy design, text, and effects customization
  8. Smart Monitoring – Roland DG Connect app provides real-time device tracking for smooth operation
  9. Automated Media Setup – Reduces waste & makes loading for various materials easy
  10. Eco-Certified Inks & Powders – Ensures safe, sustainable textile printing
  11. Multi-Color LED Indicators – Instantly check printer status for improved usability
  12. Ethernet Connectivity – Enables remote operation within the same network

Specification

Desktop Direct-to-Film Printer & Cutter - BY-20

BY-20 - Desktop Direct-to-Film Printer & Cutter
Printing method Piezo ink-jet method
Media Width 5.91 to 20.2 in. (150 to 515 mm)
Thickness Maximum 39.3 mil (1.0 mm) with liner, for printing Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting
Roll outer diameter Maximum 5.9 in. (150 mm)
Roll weight Maximum 13.2 lb. (6 kg)
Core diameter 3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width (*1) Maximum 18.89 in. (480 mm)
Ink Type 220-ml cartridge
Colors Cyan, Magenta, Yellow, Black, White
Printing resolution (dots per inch) Maximum 1,440 dpi
Cutting speed 0.39 to 5.9 in/s (10 to 150 mm/s)
Blade force (*2) 30 to 500 gf

Pick Tools & Accessories
On the Way

Sale 16%
ZEC-U5032 Cutting Blade, Long Lasting,55°/0.25, 1 Piece

ZEC-U5032 Cutting Blade, Long Lasting,55°/0.25, 1 Piece

Rs. 1,800.00 Rs. 2,160.00

Pick Materials
On the Way

Sale 16%
KIT, CLEANING CJ-70_02

KIT, CLEANING CJ-70_02

Rs. 3,973.00 Rs. 4,767.60
No reviews yet
Sale 16%
CLEANING LIQUID 450ML

CLEANING LIQUID 450ML

Rs. 6,720.00 Rs. 8,064.00
No reviews yet
Sale 16%
S-F164 Film for DTF BN-20D, 50cm x 50m

S-F164 Film for DTF BN-20D, 50cm x 50m

Rs. 12,800.00 Rs. 15,360.00
No reviews yet
Sale 16%
S-PG-220-CMYKWH Pigment DTF Ink set 220 cc CMYK+Wh

S-PG-220-CMYKWH Pigment DTF Ink set 220 cc CMYK+Wh

Rs. 23,000.00 Rs. 27,600.00
No reviews yet
Sale 16%
S-PG-BK Black Pigment DTF Ink, 220cc Cartridge

S-PG-BK Black Pigment DTF Ink, 220cc Cartridge

Rs. 4,500.00 Rs. 5,400.00
No reviews yet
Sale 16%
S-PG-CY Cyan Pigment DTF Inks, 220cc Cartridge

S-PG-CY Cyan Pigment DTF Inks, 220cc Cartridge

Rs. 4,500.00 Rs. 5,400.00
No reviews yet
Sale 16%
S-PG-MG Magenta Pigment DTF Ink, 220cc Cartridge

S-PG-MG Magenta Pigment DTF Ink, 220cc Cartridge

Rs. 4,500.00 Rs. 5,400.00
No reviews yet
Sale 16%
S-PG-WH White Pigment DTF Ink, 220cc Cartridge

S-PG-WH White Pigment DTF Ink, 220cc Cartridge

Rs. 5,000.00 Rs. 6,000.00
No reviews yet
Sale 16%
S-PG-YE Yellow Pigment DTF Ink, 220cc Cartridge

S-PG-YE Yellow Pigment DTF Ink, 220cc Cartridge

Rs. 4,500.00 Rs. 5,400.00
No reviews yet
Sale 16%
S-POWDER Glue powder for DTF BN-20D, 1 Kg

S-POWDER Glue powder for DTF BN-20D, 1 Kg

Rs. 3,000.00 Rs. 3,600.00
No reviews yet

BY-20 - Desktop Direct-to-Film Printer & Cutter

Download Datasheet
