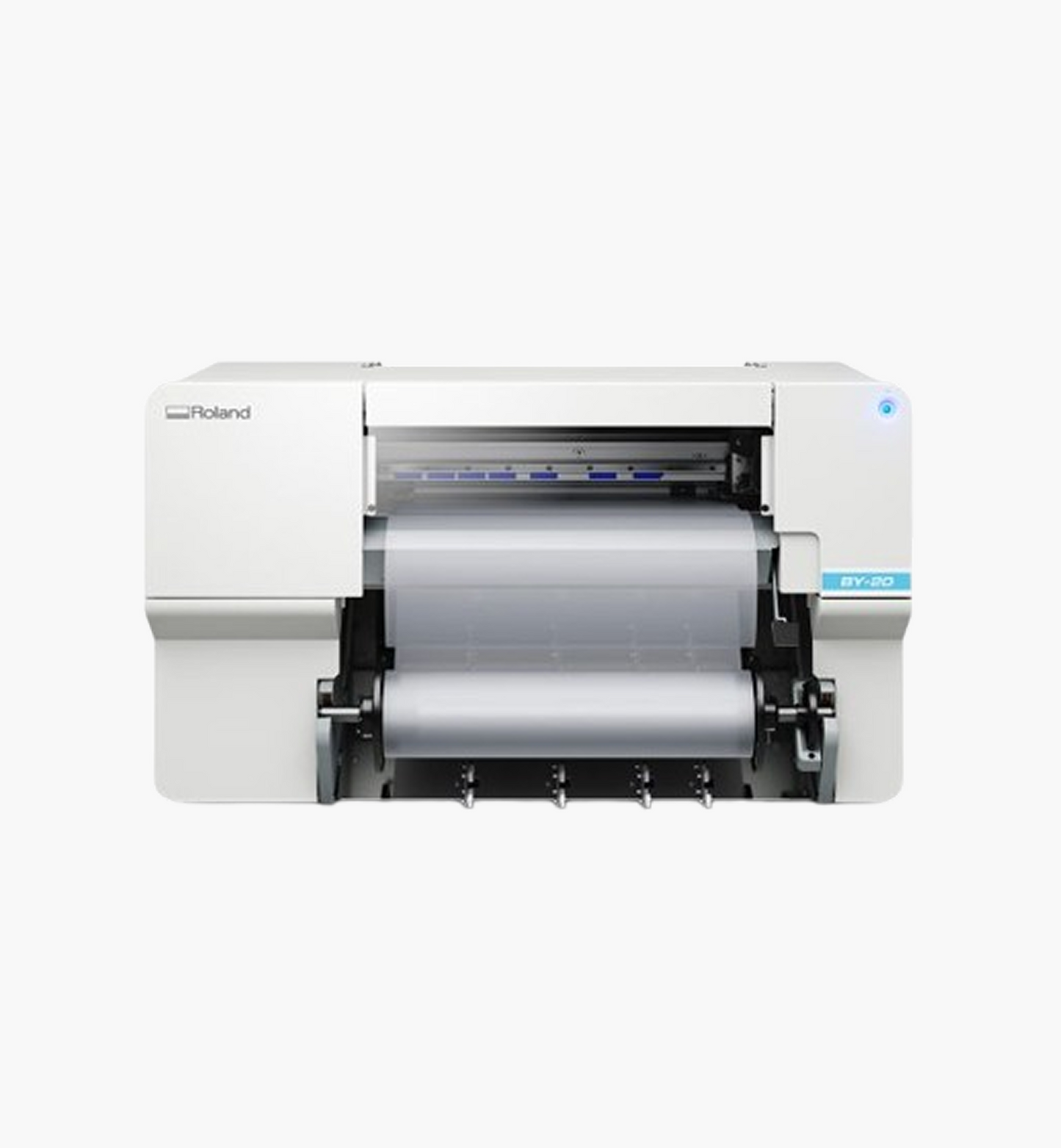

Desktop Direct-to-Film Printer & Cutter - BY-20
Desktop Direct-to-Film Printer & Cutter - BY-20
Regular price
₹ 550,000.00
Sale price
₹ 550,000.00
-16%
Regular price
(M.R.P.:
₹660,000.00
)
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Standard delivery in 12-15 days
Installation
Installation
Warranty
Warranty
Message For Damage Protection
Message For Damage Protection
What’s Included?
What’s Included?
Desktop Direct-to-Film Printer & Cutter - BY-20
Turn creativity into custom apparels and accessories with the VersaSTUDIO BY-20. This all-in-one direct-to-film printer helps simplify the process of printing and cutting and gives out exclusive results.
-
Direct-to-Film Printing – Easily create vibrant, detailed designs
-
Built-In Contour Cutting – Precision-cut printed designs for a professional finish
-
User-Friendly Operation – These high-quality results need no experience
-
Versatile Applications – Create customized apparel, accessories, and more
-
Compact & Efficient – Perfect for home-based businesses and small workspaces
-
Reliable Performance – Engineered for consistent, high-quality output
-
Business-Ready – Affordable and designed to help businesses grow
Watch BY-20 - Desktop Direct-to-Film Printer & Cutter In Action!
What Makes It Worth
Your Choice
- Versatile Media Handling – Supports widths from 5.91 to 20.2 in. (150 to 515 mm) Thickness Max. 39.3 mil (1.0 mm) with liner, for printing Thickness Max 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting Roll outer diameter Max. 5.9 in. (150 mm) Roll weight Max. 13.2 lb. (6 kg) Core diameter 3 in. (76.2 mm) or 2 in. (50.8 mm)
- High-Precision Printing & Cutting – Maximum print/cut width of 18.89 in. (480 mm) with a speed of 2.34 m²/h in standard mode
- Multi-Fabric Compatibility – Prints on cotton, polyester, denim, nylon, rayon, and more
- Compact & Cost-Effective – Budget-friendly DTF printer designed for startups and growing apparel businesses
- Seamless Workflow – Works with DTF powder shakers & heater units for automated production
- Seamless Software Integration – Works with FlexiDesigner VersaSTUDIO Edition & VersaWorks 6
- User-Friendly Software – Includes FlexiDESIGNER & VersaWorks 6 for easy design, text, and effects customization
- Smart Monitoring – Roland DG Connect app provides real-time device tracking for smooth operation
- Automated Media Setup – Reduces waste & makes loading for various materials easy
- Eco-Certified Inks & Powders – Ensures safe, sustainable textile printing
- Multi-Color LED Indicators – Instantly check printer status for improved usability
- Ethernet Connectivity – Enables remote operation within the same network
Specification
Desktop Direct-to-Film Printer & Cutter - BY-20
| BY-20 - Desktop Direct-to-Film Printer & Cutter | ||
|---|---|---|
| Printing method | Piezo ink-jet method | |
| Media | Width | 5.91 to 20.2 in. (150 to 515 mm) |
| Thickness | Maximum 39.3 mil (1.0 mm) with liner, for printing Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting | |
| Roll outer diameter | Maximum 5.9 in. (150 mm) | |
| Roll weight | Maximum 13.2 lb. (6 kg) | |
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) | |
| Printing/cutting width (*1) | Maximum 18.89 in. (480 mm) | |
| Ink | Type | 220-ml cartridge |
| Colors | Cyan, Magenta, Yellow, Black, White | |
| Printing resolution (dots per inch) | Maximum 1,440 dpi | |
| Cutting speed | 0.39 to 5.9 in/s (10 to 150 mm/s) | |
| Blade force (*2) | 30 to 500 gf | |
Pick Tools & Accessories
On the Way
Sale 16%
ZEC-U5032 Cutting Blade, Long Lasting,55°/0.25, 1 Piece
Rs. 1,800.00
Rs. 2,160.00
Pick Materials
On the Way
Sale 16%
KIT, CLEANING CJ-70_02
Rs. 3,973.00
Rs. 4,767.60
Sale 16%
CLEANING LIQUID 450ML
Rs. 6,720.00
Rs. 8,064.00
Sale 16%

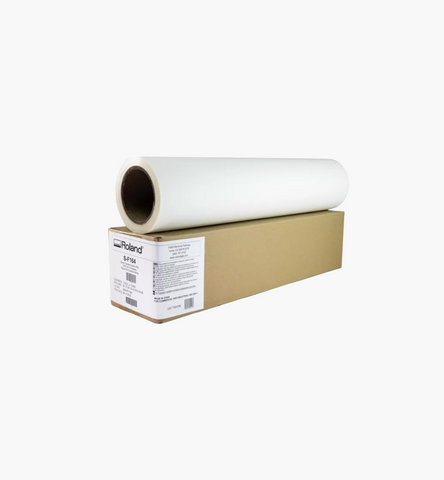

S-F164 Film for DTF BN-20D, 50cm x 50m
Rs. 12,800.00
Rs. 15,360.00
Sale 16%

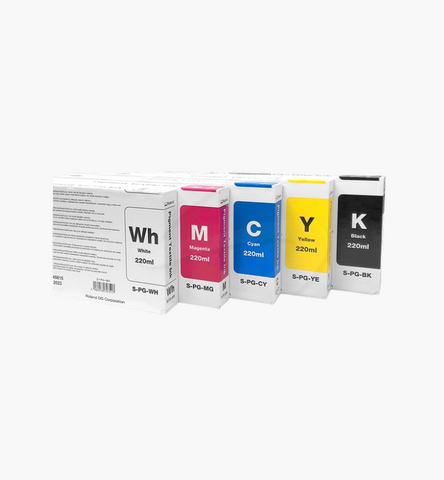

S-PG-220-CMYKWH Pigment DTF Ink set 220 cc CMYK+Wh
Rs. 23,000.00
Rs. 27,600.00
Sale 16%

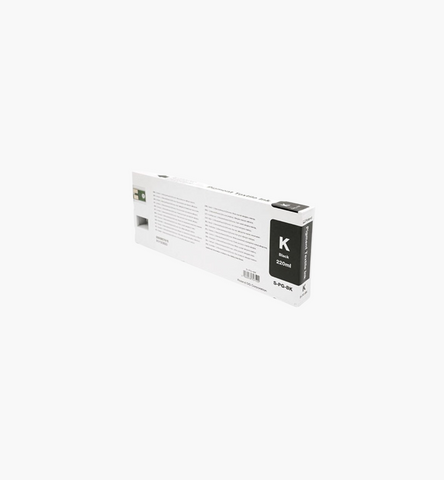

S-PG-BK Black Pigment DTF Ink, 220cc Cartridge
Rs. 4,500.00
Rs. 5,400.00
Sale 16%

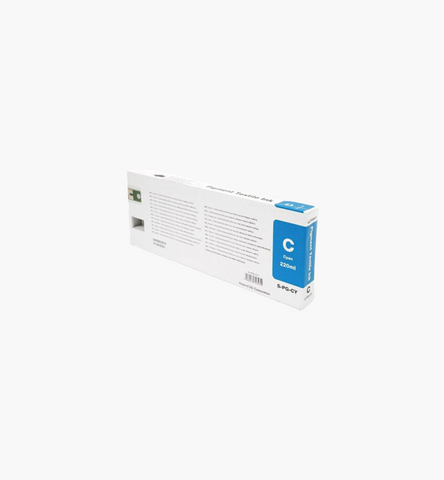

S-PG-CY Cyan Pigment DTF Inks, 220cc Cartridge
Rs. 4,500.00
Rs. 5,400.00
Sale 16%

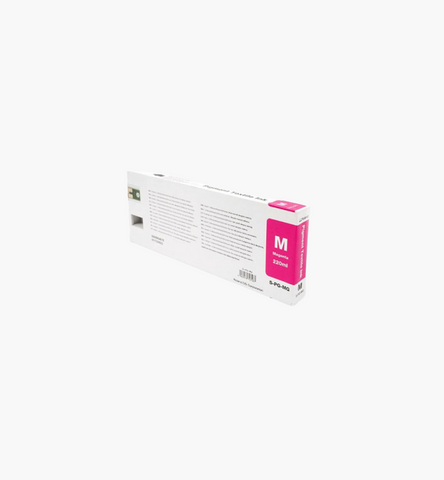

S-PG-MG Magenta Pigment DTF Ink, 220cc Cartridge
Rs. 4,500.00
Rs. 5,400.00
Sale 16%
S-PG-WH White Pigment DTF Ink, 220cc Cartridge
Rs. 5,000.00
Rs. 6,000.00
Sale 16%

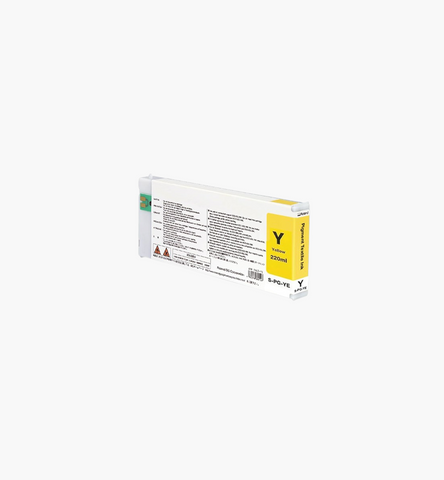

S-PG-YE Yellow Pigment DTF Ink, 220cc Cartridge
Rs. 4,500.00
Rs. 5,400.00
Sale 16%

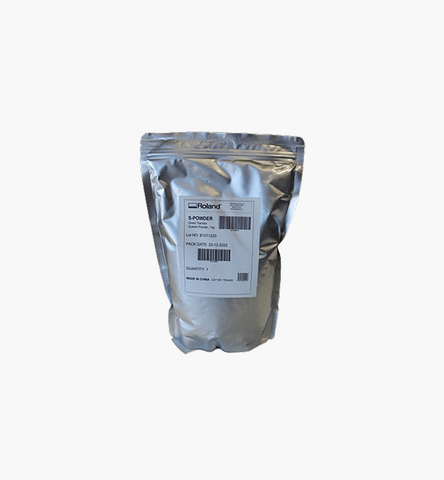

S-POWDER Glue powder for DTF BN-20D, 1 Kg
